M060 Li-ion

Request the Offer

Dati tecnici [it]

Sku: M060 Li-ion

Dimensiuni ( h × w × l ): 1,44 × 0,78 × 1,78 m
Controlul stabilității: Electrohidraulic

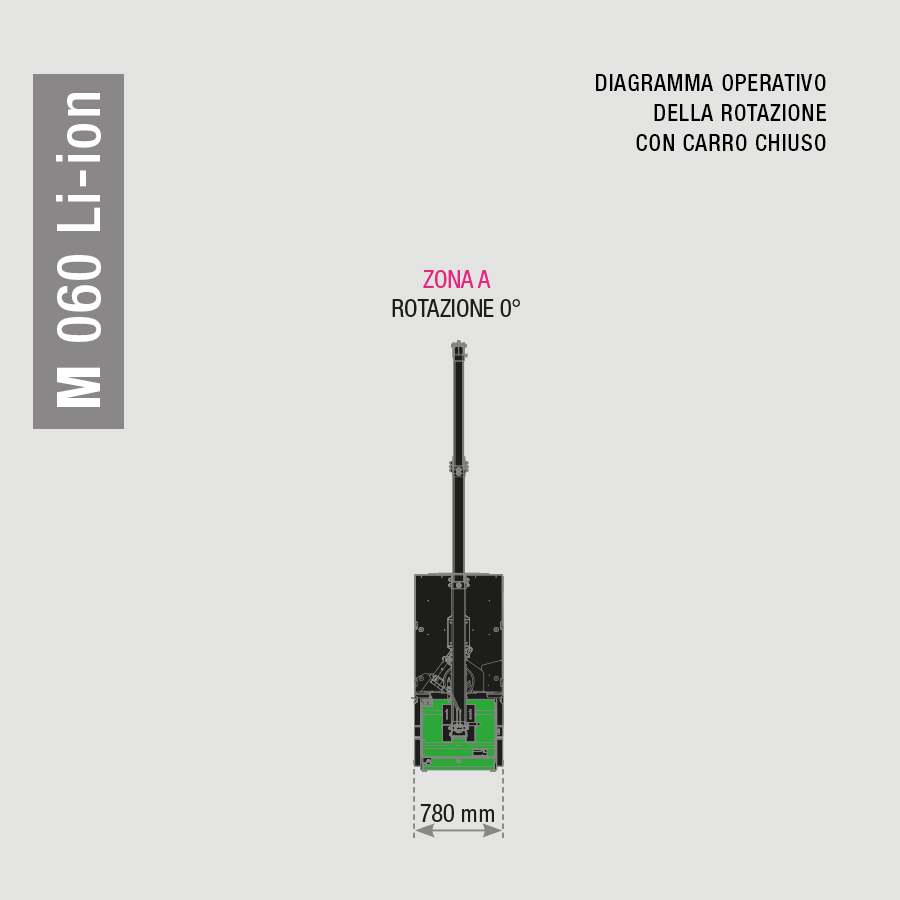

Viteza de rotație: 25° + 25°
Înălțimea maximă a cârligului: 4,25 m
Extindere maximă (m): 3.01
Capacitate maxima: 580 Kg / 1,3 m
Înălțimea maximă de ridicare (troliu subteran) (m): -34
Înălțimea maximă de ridicare cu Jib hidraulic (de la sol) (m): 4.25
Capacitate de ridicare: 580 kg
Greutate (cu excepția accesoriilor): 720 kg + 200 kg balast
Telecomanda radio: NBB Can-Bus + Color Display

Description:

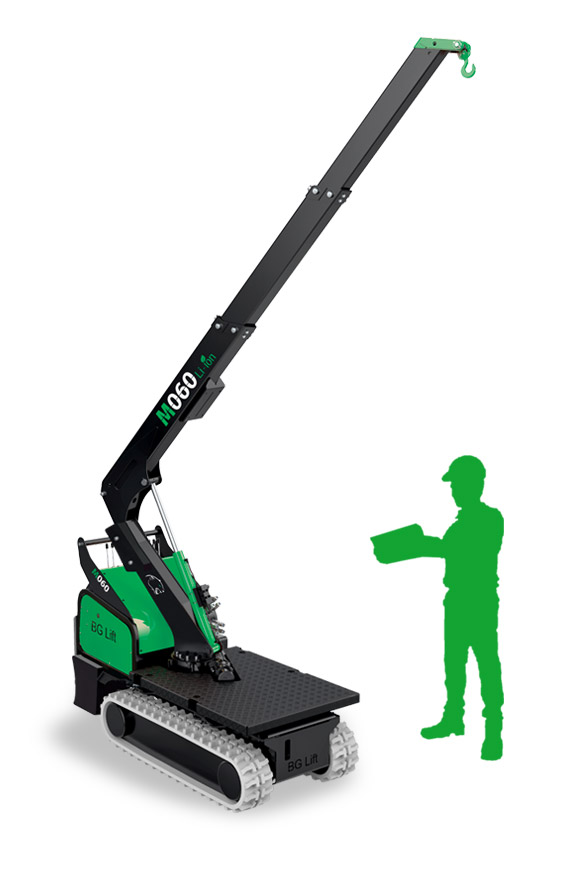

The “Pick and Carry” mini crane provided with (50°) rotation.Extremely compact and ergonomic. Designed by BG LIFT Team to confer agility, robustness and to be used in narrow spaces and access.Perfect for indoor and outdoor use.The restrained weight allows the crane to operate on the base floor of upper levels, totally in compliance with the regulations.

Technology
Electric Engine Always Allowed.
2.2 Kw Mono Phases Electric Engine, 230V inverter controlled.
50° Rotation.
The rotation allows precise and delicate positioning of the load
Fully Hydraulic Extensions.
The two completely hydraulic extensions, mounted inside the boom, allow the sequential exit of the extensions, reducing the obstructions.
Exchangeable System.
The equipment exchangeability confer to the machine further employment possibilities.

Technical specifications

	Max capacity	580 Kg / 1,3 m
	Max outreach	3,01 m
	Max hook height	4,25 m
	Rotation speed	25° + 25°
	Winch (optional)	First layer pull: 500 Kg Rope lenght: 36 m Speed in direct pull: 42 m / min
	Radio remote control	NBB Can-Bus + Color Display
	Stability control	Electronic
	Weights	Standard crane: 720 + 200 Kg ballast Electric motor: 40 kg Winch: 28 kg
	Crawler Crane Traction	Trasmission: Moto-reducer Scope: 30 l/min Pressure: 150 Bar Speed: 0 – 2 Km/h Max slope degree: 20° Max pressure on the ground: 0,25 Kg/cm²
	Electric Engine	Power supply: 24 V Battery capacity: 210 Ah Power: 5,5 Kw – 8 Hp
